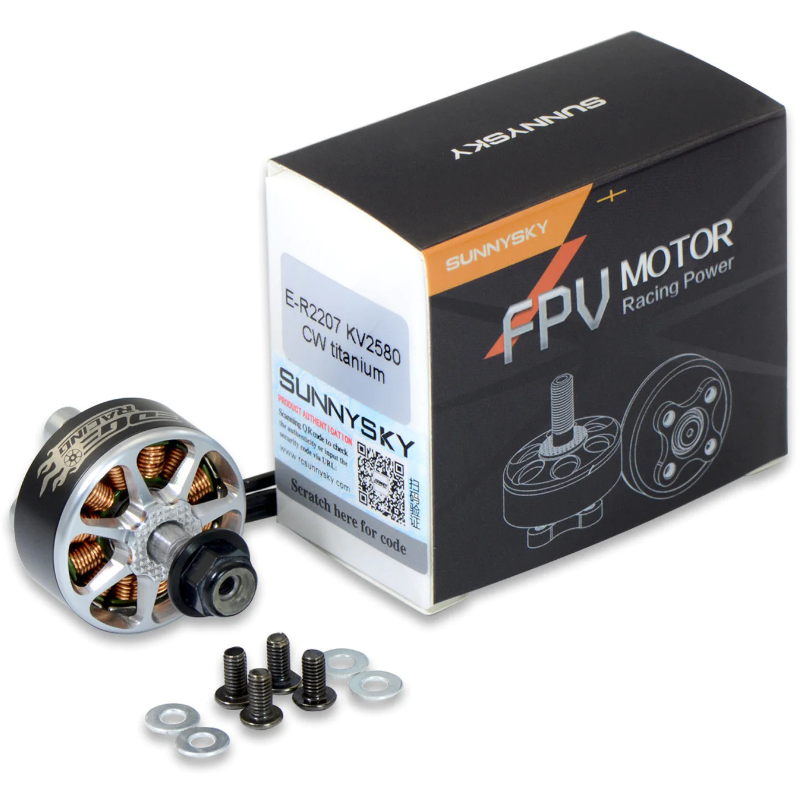

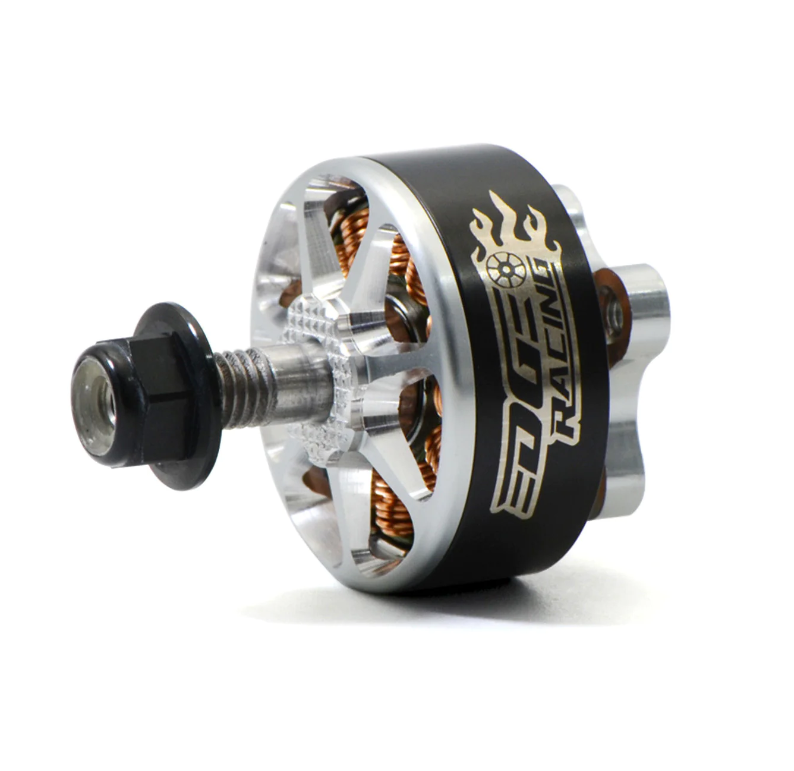

SunnySky R2207 FPV Motor 1800KV CW
1 Puan - 2 Yorum
1.170,00 TL
| Stator Diameter | 22mm | Weight | 36.8g |
|---|---|---|---|
| Stator Thickness | 7mm | Rotor Diameter | 27.4mm |
| No.of Stator Slots | 12 | Body Length(without shaft) | 20.5mm |
| No.of Rotor Poles | 14 | Max Lipo Cell | 3-6S |
| Motor Kv | 1800 | ESC | 45-50A |
| No-load current | 0.9A/10V | Recommended Prop(inch) | GF5045*3/GF5040*3 |
| Motor Resistance | 55.7mΩ |
|
|
| Max Continuous Current | 42A/30s | ||
| Max Continuous Power | 672W |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | RPM | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|---|
| GF5040*3 | 22.2 | 0.8 | 100 | 18 | 5.63 | 8734 | 80℃ 30s |
| 2.1 | 200 | 47 | 4.29 | 12518 | |||
| 3.6 | 300 | 80 | 3.75 | 15208 | |||
| 5.2 | 400 | 115 | 3.47 | 17523 | |||
| 7 | 500 | 155 | 3.22 | 19888 | |||
| 8.9 | 600 | 198 | 3.04 | 21541 | |||
| 10.8 | 700 | 240 | 2.92 | 23527 | |||
| 12.9 | 800 | 286 | 2.79 | 25401 | |||
| 14.8 | 900 | 329 | 2.74 | 26701 | |||
| 16.8 | 1000 | 373 | 2.68 | 27918 | |||
| 21.8 | 1200 | 484 | 2.48 | 30788 | |||
| 27.8 | 1440 | 617 | 2.33 | 33491 | |||
| 25 | 0.8 | 100 | 20 | 5.00 | 8886 | ||
| 1.9 | 200 | 48 | 4.21 | 12630 | |||
| 3.4 | 300 | 85 | 3.53 | 15240 | |||
| 5 | 400 | 125 | 3.20 | 17749 | |||
| 6.7 | 500 | 168 | 2.99 | 19877 | |||
| 8.45 | 600 | 211 | 2.84 | 21672 | |||
| 10.35 | 700 | 259 | 2.71 | 23432 | |||
| 12.3 | 800 | 308 | 2.60 | 25208 | |||
| 14.1 | 900 | 353 | 2.55 | 26760 | |||
| 16.2 | 1000 | 405 | 2.47 | 28023 | |||
| 20.1 | 1200 | 503 | 2.39 | 30856 | |||
| 24.8 | 1400 | 620 | 2.26 | 33105 | |||
| 33.2 | 1720 | 830 | 2.07 | 36566 | |||
| GF5045*3 | 22.2 | 0.8 | 100 | 18 | 5.63 | 7828 | 76℃ 10s |
| 1.9 | 200 | 42 | 4.74 | 10734 | |||
| 3.4 | 300 | 75 | 3.97 | 13075 | |||
| 5.1 | 400 | 113 | 3.53 | 15103 | |||
| 7 | 500 | 155 | 3.22 | 16865 | |||
| 8.9 | 600 | 198 | 3.04 | 18364 | |||
| 10.9 | 700 | 242 | 2.89 | 20014 | |||
| 13.2 | 800 | 293 | 2.73 | 21440 | |||
| 15.3 | 900 | 340 | 2.65 | 22567 | |||
| 17.9 | 1000 | 397 | 2.52 | 23856 | |||
| 22.75 | 1200 | 505 | 2.38 | 26167 | |||
| 28.1 | 1400 | 624 | 2.24 | 28270 | |||
| 36 | 1670 | 799 | 2.09 | 31033 | |||
| 25 | 0.7 | 100 | 18 | 5.71 | 8244 | ||
| 1.8 | 200 | 45 | 4.44 | 10804 | |||
| 3.2 | 300 | 80 | 3.75 | 13175 | |||
| 4.8 | 400 | 120 | 3.33 | 14975 | |||
| 6.6 | 500 | 165 | 3.03 | 16950 | |||
| 8.5 | 600 | 213 | 2.82 | 18575 | |||
| 10.5 | 700 | 263 | 2.67 | 20066 | |||
| 12.5 | 800 | 313 | 2.56 | 21509 | |||
| 14.5 | 900 | 363 | 2.48 | 22927 | |||
| 16.7 | 1000 | 418 | 2.40 | 24228 | |||
| 21.2 | 1200 | 530 | 2.26 | 26302 | |||
| 25.95 | 1400 | 649 | 2.16 | 28407 | |||
| 31.9 | 1600 | 798 | 2.01 | 30556 | |||
| 37.2 | 1800 | 930 | 1.94 | 32351 | |||
| 42.1 | 1980 | 1053 | 1.88 | 34020 |
