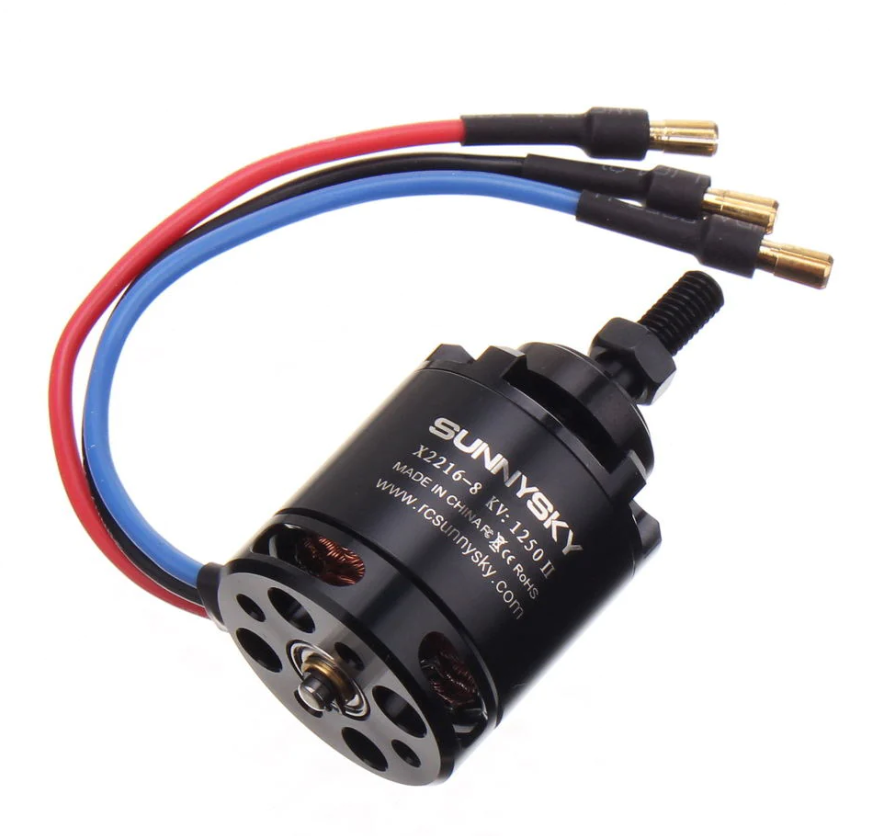

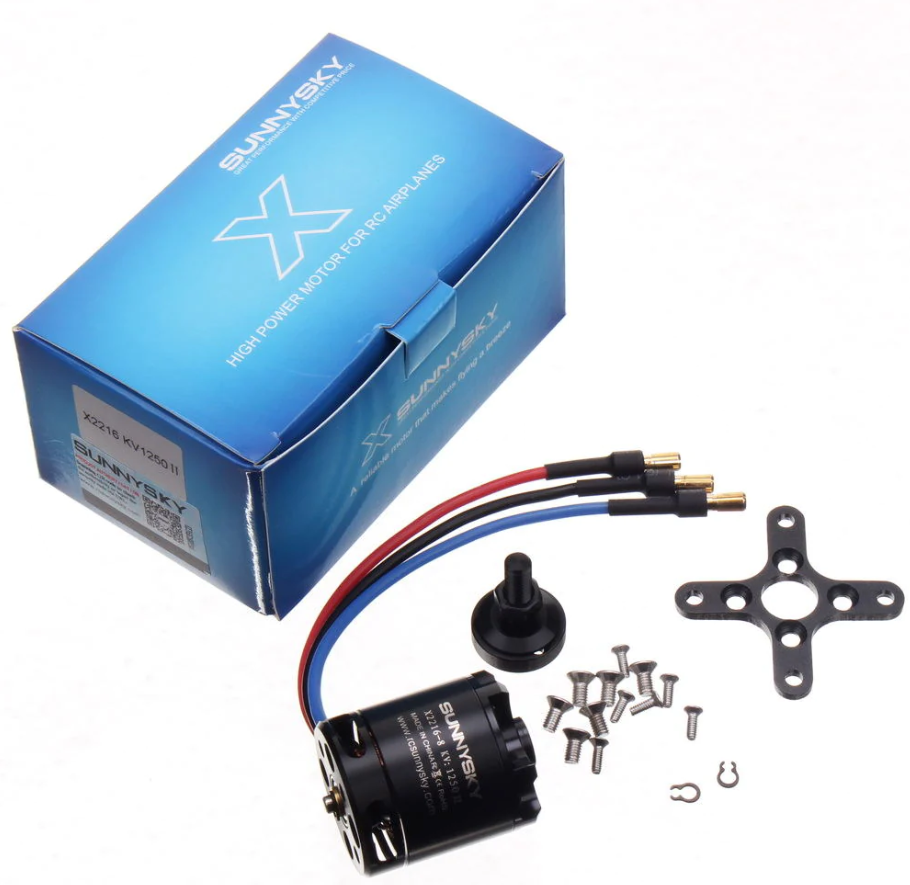

X2216- KV1250 PLANE MOTOR
1 Puan - 1 Yorum
1.235,00 TL
| Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
|---|---|---|---|
| Stator Thickness | 16mm | Shaft Diameter | 3.175mm |
| No.of Stator Slots | 12 | Body Length (Without Shaft) | 34mm |
| No.of Rotor Poles | 14 | Body Length | 36.5mm |
| Motor Kv | 1250 | Max Lipo Cell | 2-4S |
| No-load current | 1.1A/10V | ESC | 40A |
| Motor Resistance | 63mΩ | Recommended Prop(inch) | APC9047/APC9045/APC9060/APC8060/APC1047 |
| Max Continuous Current | 28A/30s | Weight for aerobatics airplane | 720g (3S 9060\9047\9045) (4S 8060) |
| Max Continuous Power | 392W | Weight for aerobatics airplane | 650g (3S 9047\1047) |
| Weight |
72g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| APC1047 | 11.1 | 0.7 | 100 | 7.77 | 12.87001287 | 58° |
| 1.8 | 200 | 19.98 | 10.01001001 | |||
| 3.1 | 300 | 34.41 | 8.718395815 | |||
| 4.5 | 400 | 49.95 | 8.008008008 | |||
| 6.5 | 500 | 72.15 | 6.93000693 | |||
| 8.3 | 600 | 92.13 | 6.512536633 | |||
| 10.5 | 700 | 116.55 | 6.006006006 | |||
| 12.7 | 800 | 140.97 | 5.674966305 | |||
| 15.6 | 900 | 173.16 | 5.197505198 | |||
| 18.1 | 1000 | 200.91 | 4.977353044 | |||
| 20.8 | 1100 | 230.88 | 4.764379764 | |||
| 27 | 1270 | 299.7 | 4.237570904 | |||
| 29 | 1350 | 321.9 | 4.193849021 | |||
| APC9060 | 11.1 | 1 | 100 | 11.1 | 9.009009009 | 42° |
| 2.3 | 200 | 25.53 | 7.833920877 | |||
| 3.7 | 300 | 41.07 | 7.304601899 | |||
| 5.5 | 400 | 61.05 | 6.552006552 | |||
| 7.5 | 500 | 83.25 | 6.006006006 | |||
| 9.6 | 600 | 106.56 | 5.630630631 | |||
| 11.6 | 700 | 128.76 | 5.436470954 | |||
| 14.2 | 800 | 157.62 | 5.075498033 | |||
| 16.7 | 900 | 185.37 | 4.855154556 | |||
| 20.8 | 1040 | 230.88 | 4.504504505 | |||
| APC9045 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 42° |
| 2.1 | 200 | 23.31 | 8.58000858 | |||
| 3.7 | 300 | 41.07 | 7.304601899 | |||
| 5.3 | 400 | 58.83 | 6.799252082 | |||
| 7 | 500 | 77.7 | 6.435006435 | |||
| 9 | 600 | 99.9 | 6.006006006 | |||
| 10.9 | 700 | 120.99 | 5.785602116 | |||
| 13.3 | 800 | 147.63 | 5.418952787 | |||
| 17.5 | 980 | 194.25 | 5.045045045 | |||
| APC8060 | 11.1 | 1.1 | 100 | 12.21 | 8.19000819 | 57° |
| 2.9 | 200 | 32.19 | 6.213109661 | |||
| 4.8 | 300 | 53.28 | 5.630630631 | |||
| 7 | 400 | 77.7 | 5.148005148 | |||
| 9.3 | 500 | 103.23 | 4.843553231 | |||
| 11.8 | 600 | 130.98 | 4.580852038 | |||
| 14.7 | 700 | 163.17 | 4.29000429 | |||
| 17 | 780 | 188.7 | 4.13354531 | |||
| 14.8 | 0.9 | 100 | 13.32 | 7.507507508 | ||
| 2.2 | 200 | 32.56 | 6.142506143 | |||
| 3.9 | 300 | 57.72 | 5.197505198 | |||
| 5.6 | 400 | 82.88 | 4.826254826 | |||
| 7.5 | 500 | 111 | 4.504504505 | |||
| 9.6 | 600 | 142.08 | 4.222972973 | |||
| 12.3 | 700 | 182.04 | 3.845308723 | |||
| 14.7 | 800 | 217.56 | 3.677146534 | |||
| 17.2 | 900 | 254.56 | 3.535512256 | |||
| 20.3 | 1000 | 300.44 | 3.328451604 | |||
| 26.5 | 1210 | 392.2 | 3.085160632 | |||
| APC9047 | 11.1 | 0.8 | 100 | 8.88 | 11.26126126 | 45° |
| 2.1 | 200 | 23.31 | 8.58000858 | |||
| 3.5 | 300 | 38.85 | 7.722007722 | |||
| 5.1 | 400 | 56.61 | 7.065889419 | |||
| 6.9 | 500 | 76.59 | 6.528267398 | |||
| 8.8 | 600 | 97.68 | 6.142506143 | |||
| 10.7 | 700 | 118.77 | 5.893744212 | |||
| 13.3 | 800 | 147.63 | 5.418952787 | |||
| 16.1 | 950 | 178.71 | 5.315874881 |
